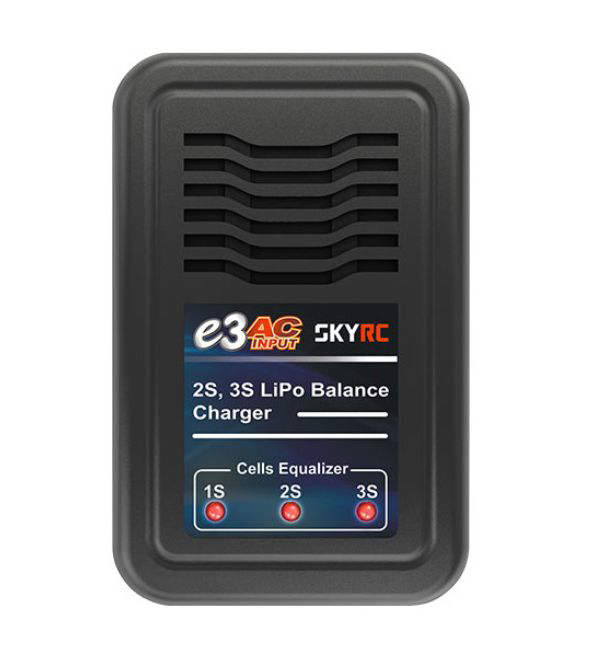

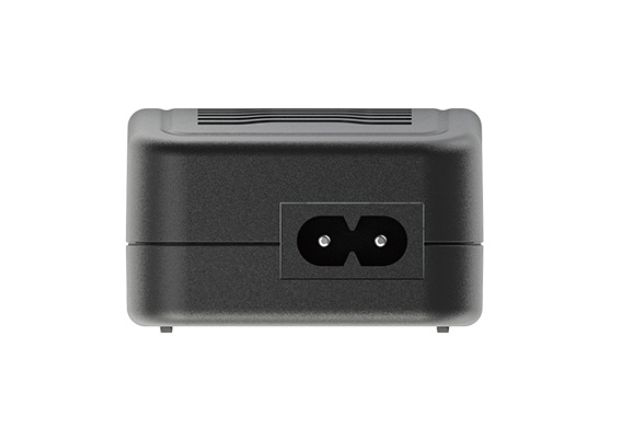

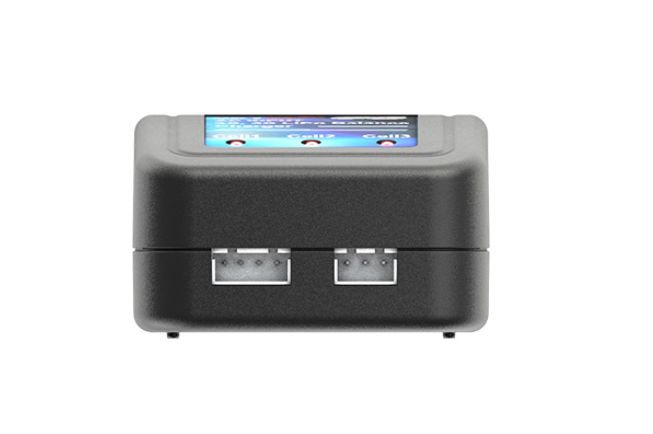

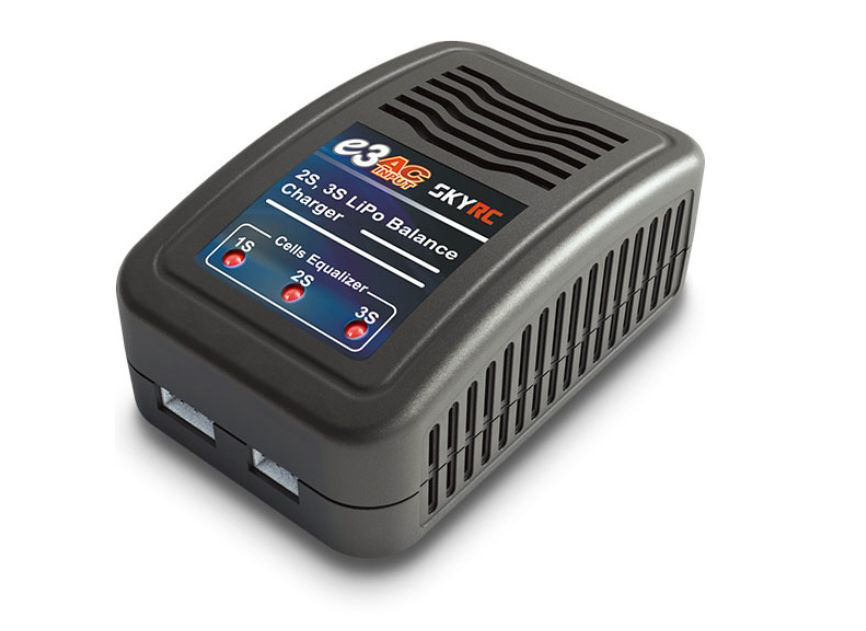

SKYRC 110-240V AC 2-3S Compact Balance Charger E3

Kompaktní balancér pro běžné Li-Po akumulátory se 2-3 články.
Hersteller: SkyRC
Verfügbarkeit: Nicht mehr verfügbar - Ware wird erwartet und der Vorgang wird weiterverarbeitet, wenn diese wieder an Lager ist (dostupné při objednání do 10 dnů).
Artikelnummer: SKYRC-110-240V
Lieferzeit: 1 - 2 týdny
$31.28 inkl. Steuer
Versand an
*
*
Versandart
Name
Voraussichtliche Lieferung
Preis
Keine Versandoptionen

Inteligentní nabíječka (balancer) řízená mikroprocesorem pro přesné a kvalitní nabíjení.

SkyRC e3 AC balance charger is designed for 2‐3s LiPo battery. Its simpleness and low‐cost make it not only popular in RC world but also find its place in airsoft market.

100-240V

Allowable AC Input 100-240V

13W

Maximum Charge Circuit Power

Handy

Inexpensive, Portable and Easy to Operate

Balance Mode

Balance Automatically with Balancer Built-in

Safe

Short Circuit / Reverse Polarity Protection
Explanation of LED Status
Charge Status LED
LED IndicatorCharger Status
LED stays green and flashes redThe charger is ready to charge
LED glows constant redThe charger is charging
LED glows constant greenThe charging process finishes
Error Message
All LEDs flashes red once and stop 1 second in cycleThe battery connects incorrectly
All LEDs flashes red twice and stop 1 second in cycleThe charger encounters overload or short circuit
All LEDs flashes red four times and stop 1 second in cycleThe voltage of single cell is too high or too low
All LEDs flashes red six times and stop 1 second in cycleThere is a 300mv difference of voltage between battery pack
What’s in the Box
e3
AC Power Cord
Instruction Manual
Specifications
AC Input
100-240VC,50-60Hz
Battery Type
LiPo
Cell Count
2-3 cells
Charge Current
1.2A Max
Cell Terminate Voltage
4.2V ± 0.02V
Circuit Power
11W ± 10%
Dimension
88x57x35mm
Weight
103g
Manuals
e3 Instruction Manual V1.4 PDF
2018-11-12
