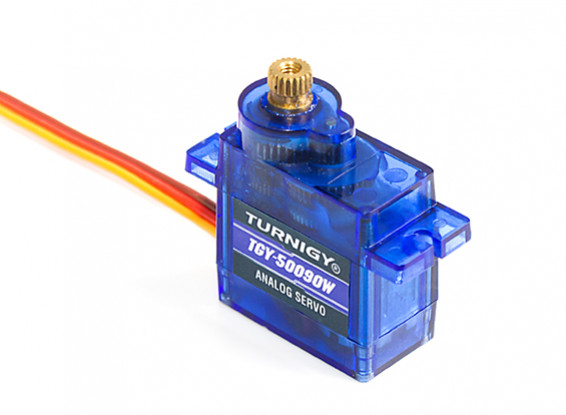

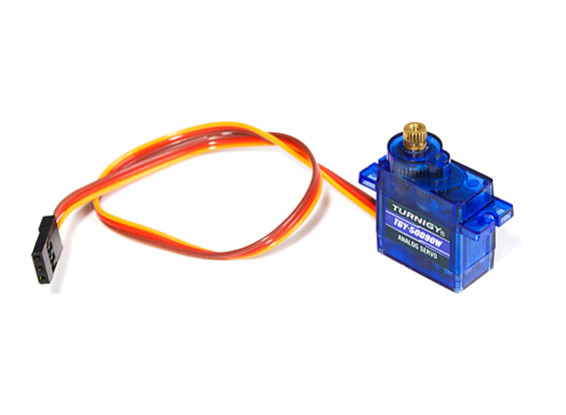

Voděodolné servo Turnigy™ TGY-50090W Metal Gears

Turnigy™ TGY-50090W Waterproof Analog Micro Servo w/Metal Gears
Artikelnummer: TGY-50090W
Lieferzeit: 5 days
Hersteller: HobbyKing
€10,10 inkl. Steuer
Verfügbarkeit: 3 auf Lager
Versand an
*
*
Versandart
Name
Voraussichtliche Lieferung
Preis
Keine Versandoptionen

Váhat: 13g
Rozměry: 22.4x12.5x22.8mm

Type: Turnigy™ TGY-50090W Waterproof Analog Micro Servo w/Metal Gears
Input Voltage: 4.8~6V
Torque: 1.7kg.cm @ 4.8V, 1.9kg.cm @ 6V
Speed: 0.09sec/60° @ 4.8V, 0.08sec/60° @ 6V
No Load Current: 300mA @ 4.8V, 350mA @ 6V
Stalled Current: 700mA @ 4.8V, 800mA @ 6V
Idle Current: 20mA @ 4.8~6V
Max deflection: 195° ± 1°
Neutral Position: 1500µsec
Dead band Width: 6µsec
Pulse Width Range: 900~2100µsec
Gear Train: Metal
Output Spline: 21 teeth
Motor: Brushed
Ball bearing: No
Waterproof: Yes
Dimensions: 22.4x12.5x22.8mm
Weight: 13g
Servo Lead length: 190mm
Servo Connector: JR/Futaba
