Quanum 700TVL Sony 1/3 Camera 2.1mm Lens (PAL)

Kvalitní kamera kompaktních rozměrů s vestavěným OSD menu a infra režimem.
SKU: kamera-osd-Quanum
Delivery date: 5 days
Manufacturer: HobbyKing
890.00 Kč incl tax
AVL: 1 in stock
Ship to
Shipping Method
Estimated Delivery
No shipping options

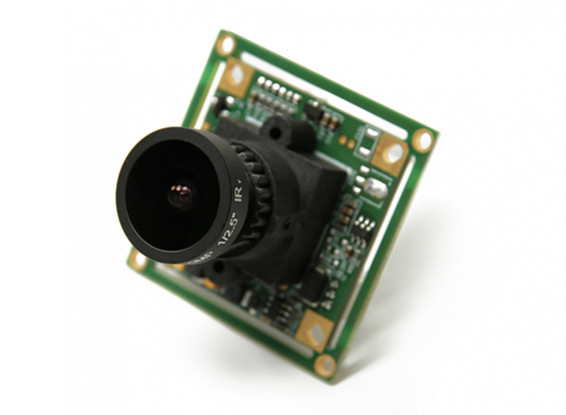

This high end camera was built for FPV flying in mind. It comes with all the characteristics you need for FPV racing, including ultra-light weight and low latency.

The Quanum 700TVL camera has excellent 7 element glass optics and the FOV is around 156 degrees with an aperture of 2.0. The focus can be adjusted to get the focal length you want and then locked to this length. This all adds up to ultra-clear optics.

Also, the crystal on the back side of these is surface mount, not hanging like most other board cams, making it less susceptible to vibration damage. Adding to the excellence it also has plug and play servo pins for fast connection and silicone wiring to avoid stressed cables and better resistance to vibration and heat.

An extra feature is the OSD connection which allows for manual configuration and the ability to add your name into the internal OSD.

If you are also looking for low light performance and infra-red capable camera, then this 2.1mm 700TVL lens camera is the one for you.

There is also a NTSC version available.

Get this camera into your multi-rotor/plane and see where you are going.

Camera Type: Color PAL
Pick Up Device: 1/3"" Sony EXviewHAD CCDII*
Pic Elements: 976(H) x 582(V)
Resolution: 700TV Lines
Min Illumination: 0.1 Lux / F1.2
White Bal: Auto/preset/indoor/outdoor/fluorescent (Requires optional OSD Cable)
Lens: 5mp M12 IR/ F2.0/2.1mm
Dimensions: 38x38mm
Weight: 18g (with 2.1mm lens)
Voltage: DC8.5V-DC20V
Power: DC12V 70mA +/-5mA
FOV: 170 Degrees

1 x Sony CCD 1/3inch IR Camera

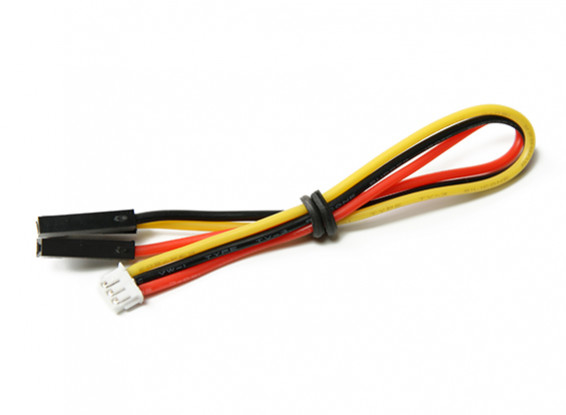

1 x lead
