Q450 Glass Fiber Quadcopter Frame 450mm with Flamewheel Style Arms

The Q450 is a well thought out 450mm quad frame built from quality materials. The main frame is glass fiber while the arms are constructed from ultra durable polyamide nylon.
SKU: F450-WH
Delivery date: 5 days
Manufacturer: RCTimer
€38.57 incl tax
AVL: Available in on request
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

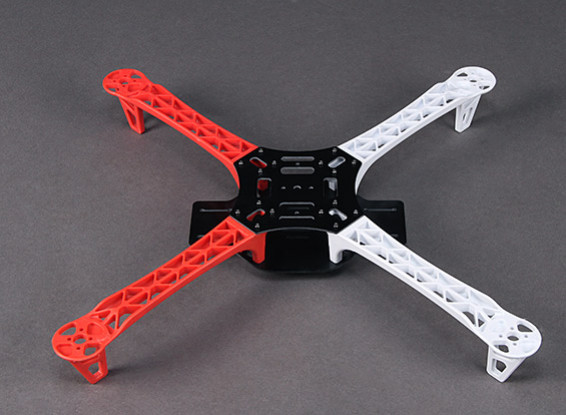

Q450 Glass Fiber Quadcopter Frame 450mm with Flamewheel Style ARMS

Original ARMS (RED+BLACK) not included.

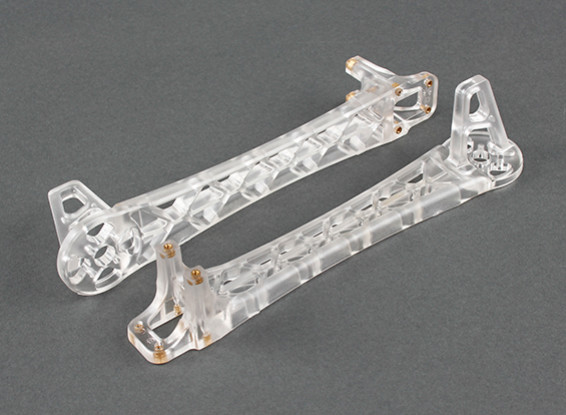

The package includes 4 pieces Flamewheel Style ARMS

PCB LED modules are not included.
Integrated PCB Version not included.

The Q450 is a well thought out 450mm quad frame built from quality materials. The main frame is glass fiber while the arms are constructed from ultra durable polyamide nylon.

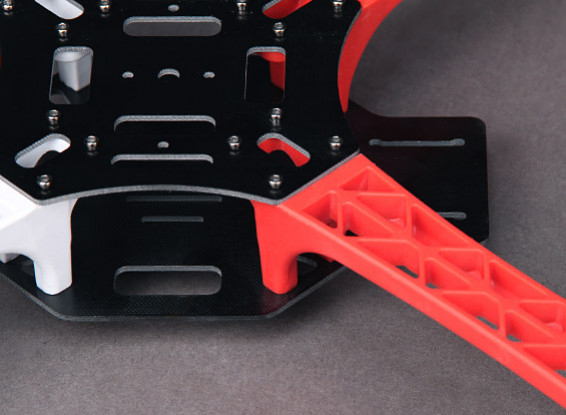

Assembly is a breeze with pre-threaded brass sleeves for all of the frame bolts, so no lock-nuts are required. It utilizes one size of bolt for the entire build, making the hardware very easy to keep in order and only requiring one size of hex wrench to assemble.

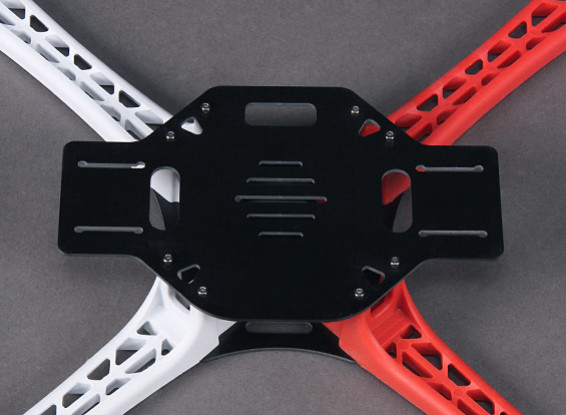

A great feature of this frame is the large mounting tabs at the front and rear of the main frame bottom plate for mounting cameras or other accessories. This makes for a great way to take aerial video or fly FPV without the need to add any additional mounting brackets.


Features:
Built from quality glass fiber and polyamide nylon.
Pre-threaded brass sleeves for all of the frame bolts.

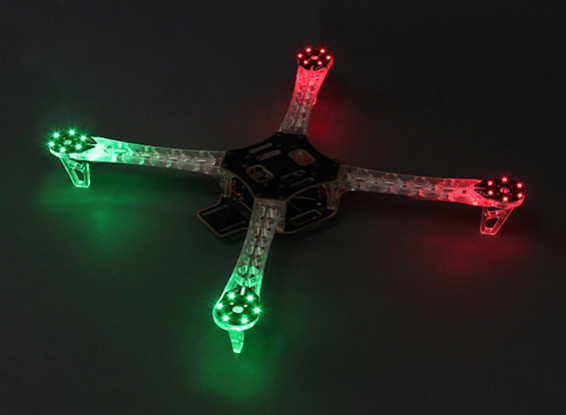

Flamewheel Style ARMS for LEDs module or LED stripe
Large mounting tabs on main frame bottom plate for easy camera mounting.
Easy assembly.

Specs:
Width: 450mm
Height: 55mm
Weight: 270g (w/out electronics)
Motor Mount Bolt Holes: 16/19mm

Required:
4 x 28mm 1000~1200kv (or similar size/kv)
4 x 15~25 Amp ESC
4 x 8x4~10x4.5 Prop (2CW & 2CCW)
1 x HobbyKing Multi-Rotor Control Board
1 x 1500~2200mAh 3s 11.1v Lipoly battery
