Newest version, have soldered already, ready to work!

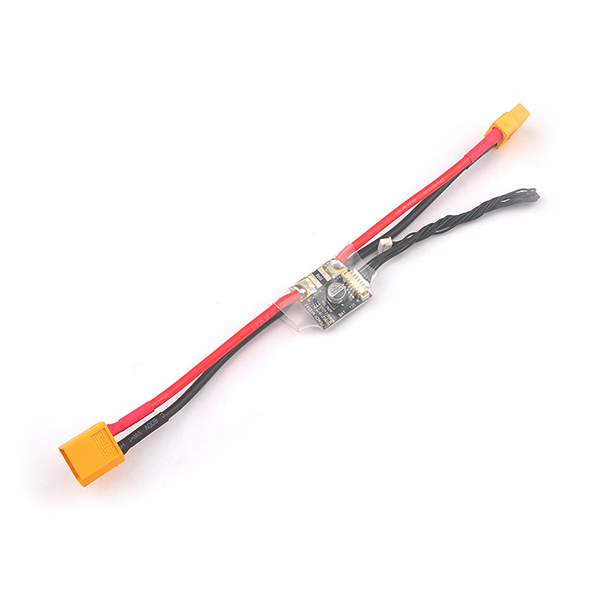

Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.
Note: The Power Module is only designed to power flight control, receiver or other accessories (GPS, Radio telemetry, OSD etc.). It is not designed to power servos. Please use separate BEC for servos.
Specifications:
Power Module 28V/ 90A for Pixhawk / APM Flight Controllers W/ 3A BEC
Input voltage: 6~28V (support 30V)
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V±0.1V and 3A max
6P molex cable plugs directly to APM /Pixhawk 2.5's 'PM' connector
Weight (g): 26(include all wire)
Tato položka je samostatně neprodejná, prodává se pouze společně s Pixhawk PX4 32-bit Open Source Autopilot Flight Controller V2.4.8
