Extend your range and increase your link robustness with the OrangeRx CPPM receiver. This is the long antenna version making it ideal for FPV racing and for models with carbon fiber frames. The extra length of the antenna allows you to route them outside of the model. This is an upgraded version of this popular receiver which has new software.
OrangeRx receivers are built using original components, MCUs and with state of the art SMT automation to ensure a quality product each and every time. Every R618XL is manufactured using impedance matched PCBs with exact tuning to provide signal stability and range that exceeds any of the previous generation ORX products. In fact, our testing has shown that the R618XL exceeds the range of other receivers in the same class.
All R618XL OrangeRx receivers are QC tested using our latest method that ensures range checking takes place as the receiver is programmed. Simply put, if the R618XL cannot pass the range check it cannot be programmed, this ensures 100% of R618XL are guaranteed to work flawlessly.
The R618XL ushers in a new era of quality, reliability and performance for the OrangeRX line up.
This receiver features TRUE DIVERSITY technology. It is especially important for long range flights and in situations where you need a more robust reception. It is also very useful in aircraft with carbon fiber frames where antenna can be in shadow of the airframe.
If one of the antennas cannot receive signal due to its orientation of airframe shadow, the satellite will use the other one and will still receive proper commands from the transmitter. We tested these satellites in real flight tests many times and achieved 2 or more kilometers line of site performance. Please note that your range depends on the conditions in your area – inteference, WiFi presence, obstacles and even air humidity.
This receiver has been tested and is fully compatible with the following flight controls:
- MultiWii - APM(2.0 and up)
- V-Bar 5.3
• Compatible with DSM2/DSMX 1024/2048 aircraft radio and module systems
• 6 channel CPPM output allowing for single line connection with compatible devices
• Ultra fast brownout recovery and programmed fail safe mode
• Wide input voltage: 3.7~9.6V
• Long 145mm antenna
Sensitivity: up to -97dBm
Input voltage: 3.7~9.6V
Current consumption: 35mA
Size: 19.5x30x10mm, 43x22x13mm with case
Weight: 3.7g / 9.8g with case
Wire Length: 210mm
Antennae Length: 145mm

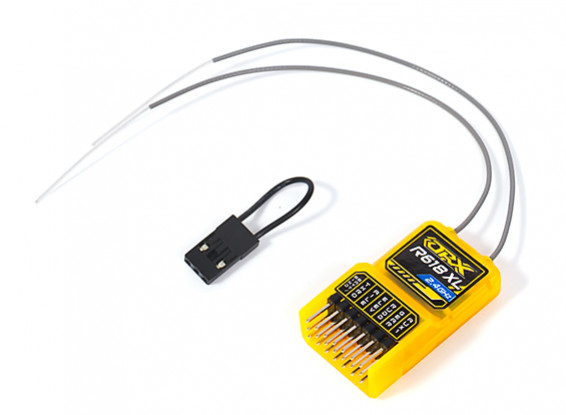

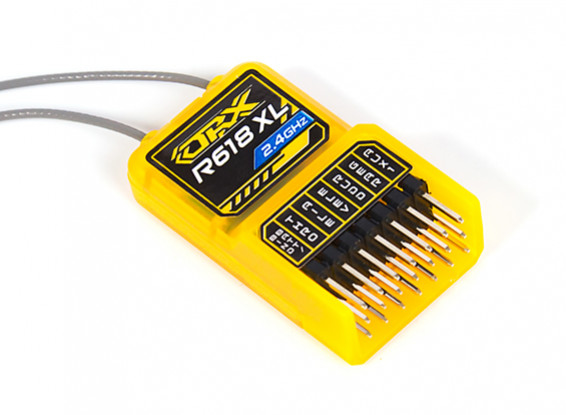

OrangeRx R618XL PWM / CPPM Receiver (long antenna)
1) This is not a Spektrum product, nor is it a copy of a Spektrum product. The Spektrum brand is a trademark of Horizon Hobbies USA.
2) This is not an underground black market fake Spektrum Satellite. OrangeRx quality is guaranteed.
