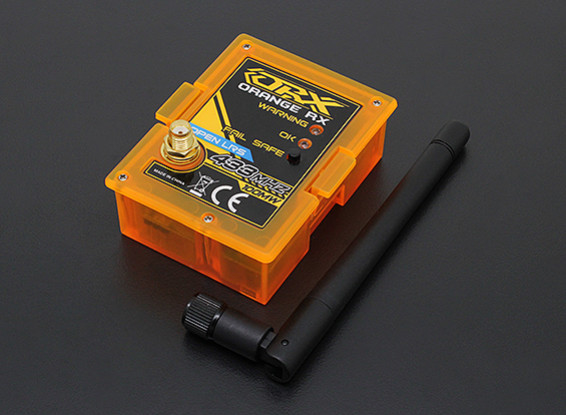

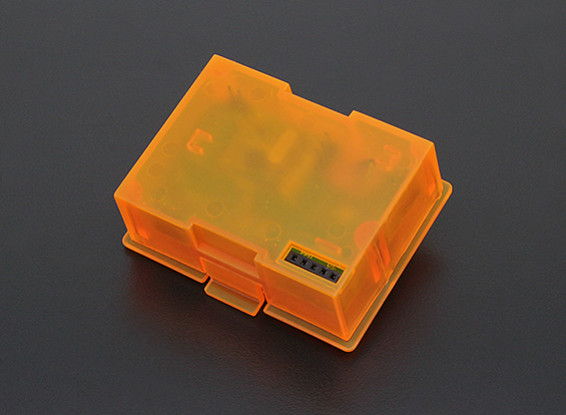

OrangeRx Open LRS 433MHz TX Module (JR/Turnigy compatible)

The all new OrangeRX Open LRS Tx Module is an open source transmitter module that can be programmed to use your choice of protocol and any channel in the 400 - 460MHz range.
Výrobce: HobbyKing
Dostupnost: 1 ks je skladem
Kód: OrangeRX-433Mhz
dodací lhůta : 3 - 5 dnů
590,00 Kč s DPH
Ship to
Shipping Method
Estimated Delivery
No shipping options

Systém není určen pro běžné uživatele, nejedná se o systém snadného zapojení a zprovoznění a veškerá dokumentace je pouze v EN.

Pozor při flešování procesoru musí být napětí z programátoru USBAsp nastaveno na 3.3V, některé programátory mají nastaveno napájecí napětí pouze na 5V a ty nelze tedy použít, jinak dojde k trvalému poškození procesoru.

The OrangeRX Open LRS Tx Module a very versatile unit perfect for your custom projects.
It utilizes a 100mW RFM22B RF unit and Atmega328 processor with Arduino Bootloader allowing you to upload pre-written codes or write your own to suit your transmitter needs.

The default code utilizes 3 channel frequency hopping. If you would like to use a different protocol, you can write your own hopping codes or simply download one of the many pre-written OpenLRS code sets already available.

• 3.3V FTDI support for easy programming
• Serial Port for firmware upload and telemetry application
• I2C port for sensor applications (Wii Motion Plus based Headtracker)
• 16Mhz Atmega328 processor with Arduino Pro Mini compatible bootloader.
• LM2937 3.3v voltage regulator
• U.F.L connector between PCB and antenna
• Buzzer for audible information
• RFM22B transceiver unit including Si4432 chip with configurable 0-100mW output, frequency hopping capability and hundreds of features

Compatibility: 5-pin JR compatible module-based transmitters
Frequency: 433MHz
Voltage input: 6.8~12VDC
IC: Atmega328P
Power: 100mW
Range: Full range system

OrangeRx OpenLRS Tx Module (JR/Turnigy compatible)

*Note: The setup and use of Open LRS requires computer programming skills and basic Arduino experience. This is not a "plug and play" system. See the attached document under the "Files" tab for resources on programming info, firmware downloads and more.
