The Turnigy Multistar Elite Outrunners are designed with one thing in mind - maximizing Multi-rotor performance! The new
Multistar Elite motors are the new standard in Multirotor performance. Each Elite motor is built for a specific type/application allowing for further refinement and efficacy/power to be optimized.
Multistar Elite motors are more than a fancy name and new dark green color. They are built using the highest quality components, inc. EZO Japan bearings, N45SH Magnets, 0.2mm laminations, 180deg oxygen free copper wire, 0.005g balancing, perfect wind laid down, with 100% QC. In the design stage each motor is evaluated for their type application; everything from their mounting, to the prop type adapters are taken into consideration. The Elite motors are truly works of art

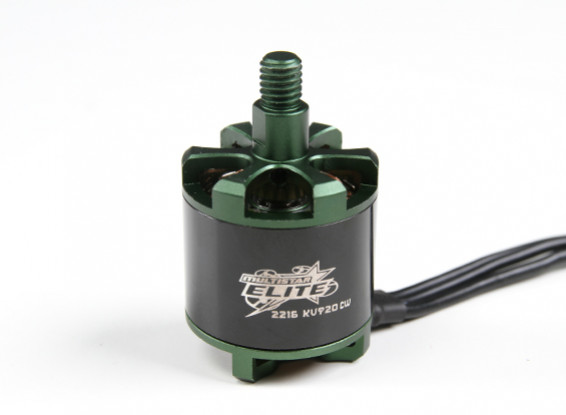

The 2216 920kv is a very unique motor design, having a 4mm main shaft that goes all the way thru the motor to include the prop adapter threads vs the standard 3mm shaft used by others in this class.
The 4mm steel shaft is supported by massive 11mm EZO Japan bearings almost double the size from standard 22xx motor options. This makes this the strongest and most durable motor in its class.
If you’re building a 400~600 class multirotor or looking to upgrade your RTF this motor is a must have.
Multistar Elite is unmatched in quality and value, and the performance speaks for its self.
• 16mm EZO Japan Bearings
• Solid steel 4mm main thru shaft (no Aluminum threads)
• Massive 11mm EZO Japan Bearings
• N45SH Magnets
• .2mm Laminations
• 180deg oxygen free Copper wire
• .005g Or better balancing
• Perfect laydown windings
• 100% QC

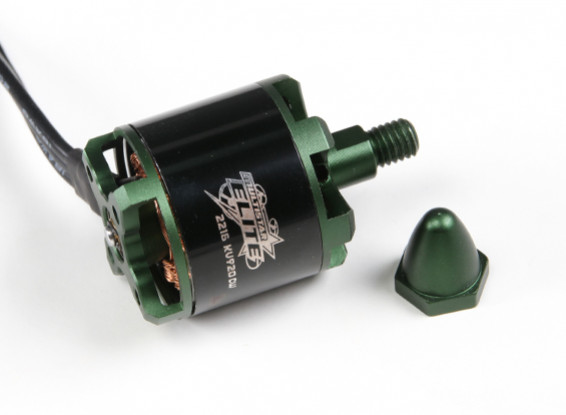

• Built in folding prop adapter
• Single wire wound
Lipo cells: 3S
Max current: 255W
Max Amps: 18A
No Load Current: 0.55A/10V
Number of Poles: 12/14
Motor Shaft: 4mm
prop shaft: CW/CCW 8mm/6mm threads quick release style
bolt hole spacing: 16mm*19mm
Lamination thickness: 0.2 mm
Magnets: N45 SH
Bearing: EZO Japan
Balancing spec: 0.005g

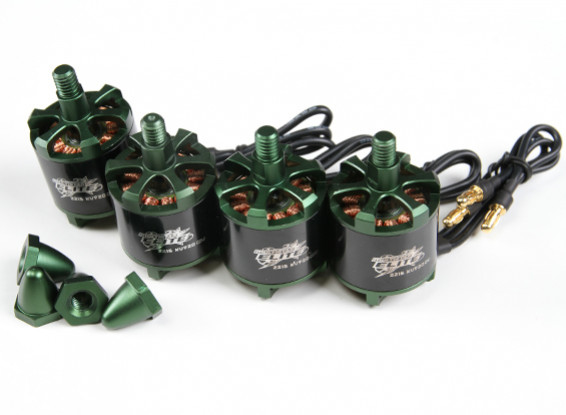

2 x CW 2216 920kv motors
2 x CCW 2216 920kv motors
