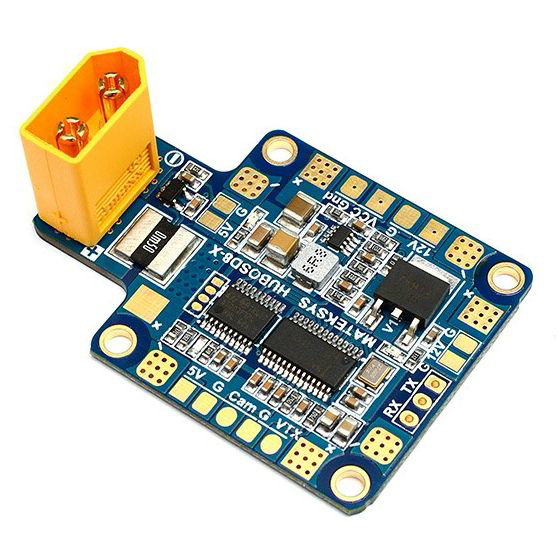

Matek Multi-rotor X-shape Power Distribution Board W/ 5V/ 12V outputs, Current Sensor, OSD (XT60 Connector) STOSD8

Matek Multi-rotor X-shape Power Distribution Board W/ 5V/ 12V outputs, Current Sensor, OSD (XT60 Connector)

General

Input voltage range (3S-5S operation): 8 - 21VDC
PDB: 4x30A (Max.4x35A)
Regulated 5V and 12V outputs
Current Sensor 140A Built-in STOSD8

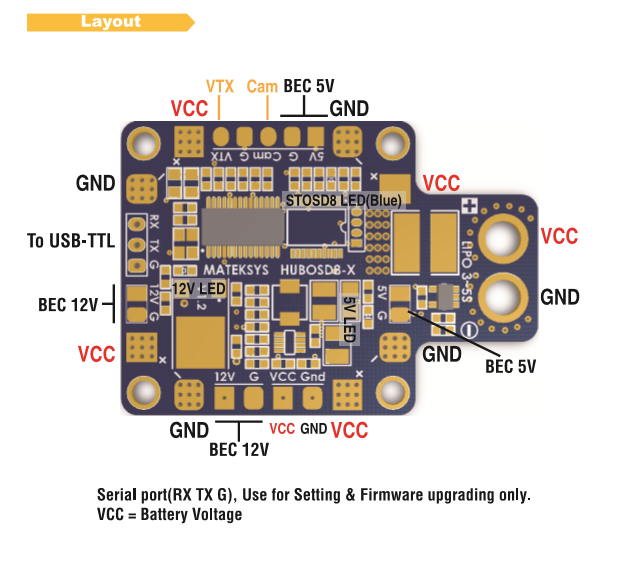

Physical:
- 2oz copper, 4
-layers &1.6mm PCB.

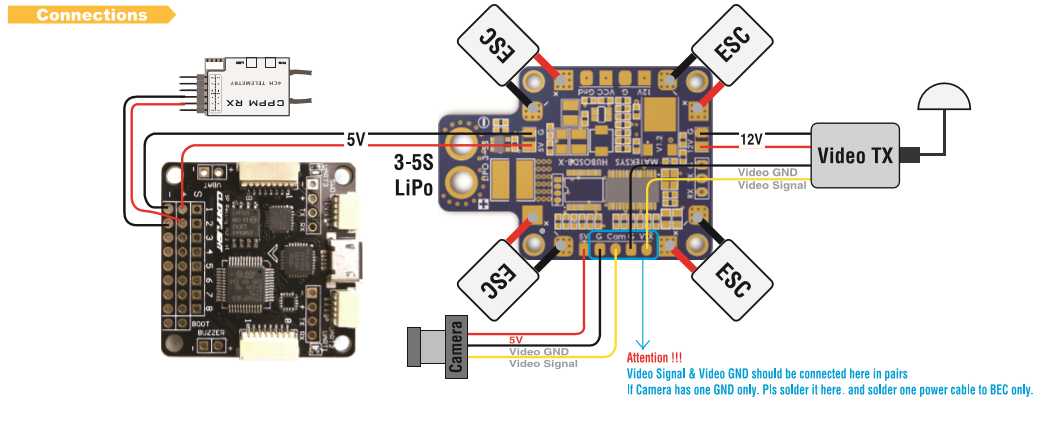

- 1x Battery input, 4x ESC outputs.  2x BEC 5V outputs, 2x BEC 12V outputs.
- Camera signal & Gnd pads, Video Transmitter Signal & Gnd pads
- 1x Serial port (RX, TX, G)
- Dimensions: 51x36x4mm, Weight: 9g
- Mounting holes 30.5mm square spacing，Φ3mm

PDB (ESC output)

Continuous current: 30A per output
Peak current (10 seconds/minute): 35A per output

BEC 5V output

Designed for RC Receivers, Flight controllers, OSD, and Servos.
DC/DC synchronous buck regulator.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amps (Max.2.5A 10s/minute)
Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant (5 seconds/minute)


BEC 12V output

Linear regulator, very low noise. LC Filter is needless.
Designed for Video TX or FPV camera.
Voltage: 12.0 +/- 0.3VDC (4~5S operation)
Continuous current: 500mA@16V IN,  400mA@20V IN
Short-circuit tolerant (2 seconds/minute)
If the battery is 3S LiPo,  Output voltage=3S LiPo voltage - 1V

Current Sensor

140A
If current >140A. STOSD display 140A
