Tarot 450 DFC Split Locking Rotor Head Assembly TL48025-03

Kovová rotorová hlava Flybarless DFC (direct flight control) pro bezpádlové systémy.
Hersteller: HobbyKing
Verfügbarkeit: 1 auf Lager
Artikelnummer: Tarot-complet-head
Lieferzeit: 3 - 5 dnů
€61,94 inkl. Steuer
Versand an
*
*
Versandart
Name
Voraussichtliche Lieferung
Preis
Keine Versandoptionen

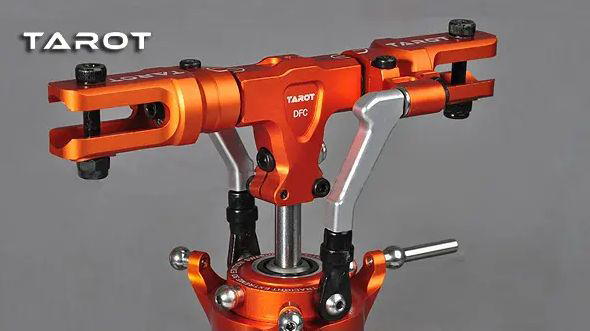

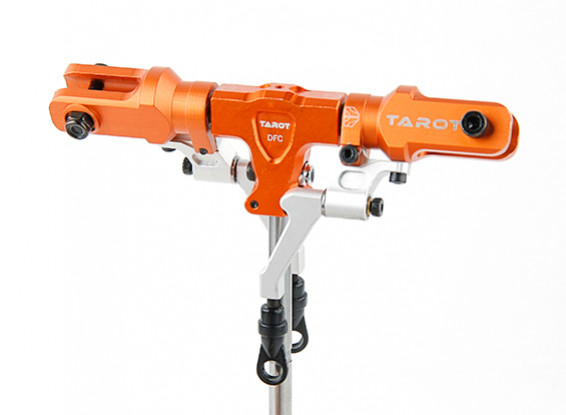

Tarot 450 DFC Split Locking Rotor Head Assembly TL48025-03 Orange with swashplate

Completed!

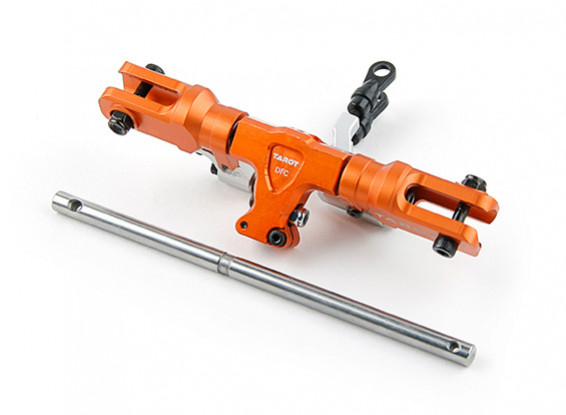

The whole head is folded, only the plate and the shaft are separate.

Description:

Item Name: Tarot 450 DFC Split Locking Rotor Head Assembly
Brand: Tarot
Item No: 450DFC
Color: Orange

Features:

1).DFC rotor head for Tarot 450 DFC (TL45162/TL48025) and DFC rotor head other modifications.
2).Independent innovation the inclined push rod structure design, unique hinged balanced rolling moment.
3).6061-T6 aluminum CNC multi-axis machining technology.
4).Trapezoidal horizontal axis washer can better pass rubber biasing load.
5).The ultra-low center of gravity and shorter spindle design, the the rotor level close to the body's center of gravity.

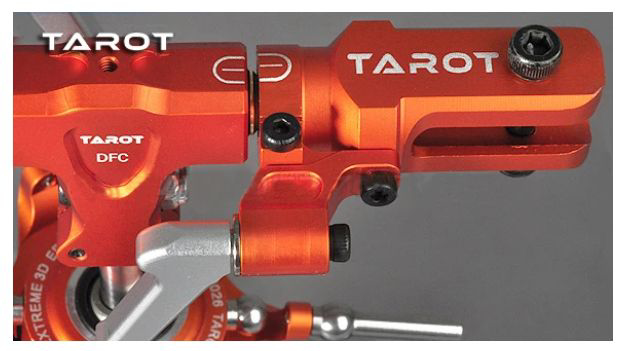

6).New DFC main rotor holder using a three-point V-shaped spindle lock design.
7).The new DFC Main Rotor Housing and main rotor holder top laser scale line.
8).DFC strengthen horizontal axis pad 85 ° superhard rubber forming one
9).The new design of large-size bearings folder seat center thrust bearing.
10).New Anti-shot horizontal axis overall tensile design 480 specifications.

Relevant supporting ID:

450 DFC Anti-shot horizontal axis TL48009
450 new large bearing Moderator rotor holder main group TL48013
450 DFC Locking main rotor holder TL48018
450 DFC main rotor holder connected arm TL48026
450 DFC tilt rod TL48027
450 DFC horizontal axis washer TL45000
450 DFC horizontal axis washer TL45167

Specifications:

1 x 450 DFC Main Rotor Housing Set
1 x 450 DFC spindle (108MM)
2 x 450 DFC the abscissa washer (Φ4xΦ7.0x4.0mm)
1 x The 450 DFC spindle locking collar screw (M2.5 x10.5mm)
1 x M 2.5 slip nut
2 x The metal bearing Moderator rotor holder
2 x Bearing (Φ4.0xΦ8x3.0mm)
2 x Thrust bearing (Φ4.0xΦ9x4.0mm)
2 x Washers (Φ4xΦ6.5x0.5mm)
2 x Bearing (Φ4.0xΦ9x4.0mm)
2 x Washers (Φ2.5xΦ4.5x0.3mm)
2 x Cup head hexagonal screws(M3 x 15mm)
2 x M3 slip nut
1 x The 450 DFC Anti shot horizontal axis TL48009 (Φ4.0x54.0mm)
2 x 450 metal DFC main rotor holder connected arm
2 x The franc bearing (Φ2xΦ5x2.5mm)
2 x Plane bearing (Φ2xΦ5x2.5mm)
2 x The M2.0 Cup head the hexagonal screw (M2.0x9mm)
2 x Cup head screw, M2.0 (M2.0x5mm)
2 x The 450 metal DFC tilt link
2 x M2.5 only the vent screw (M2.5x10mm)
2 x 500 DFC Main Rotor ball head buckle TL50186
2 x The M2.0 Cup head Hexagon collar screw (M2.0x15mm)

Package Included:

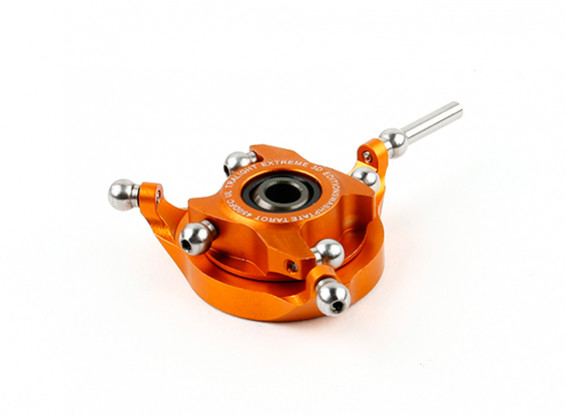

Tarot 450 Pro/Pro V2 DFC/CCPM Metal Ultralight Swashplate - Orange (TL48030-02)

DFC rotor head for Tarot 450 PRO/PRO V2 DFC (TL45162/TL48025)
