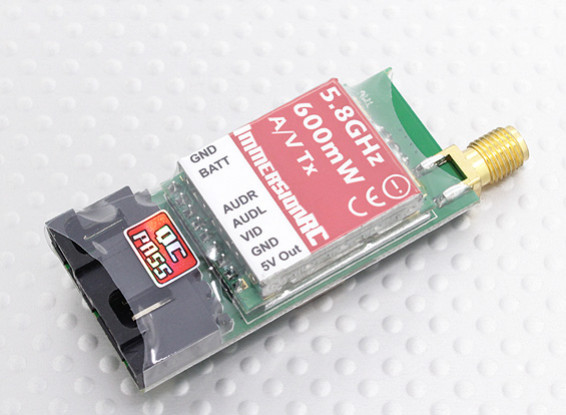

Big power 5.8Ghz in a small package!
Thanks to its clever design, this 600mW 5.8Ghz transmitter puts out very little heat, keeping the heatsink and overall size very small.
This transmitter is compatible with the Fat Shark RCV922 or similar camera and is also an ideal plug & play upgrade for the Fat Shark 5.8ghz 100mw FPV system.
600mW (28dBm, +/- 1dB) of clean output power

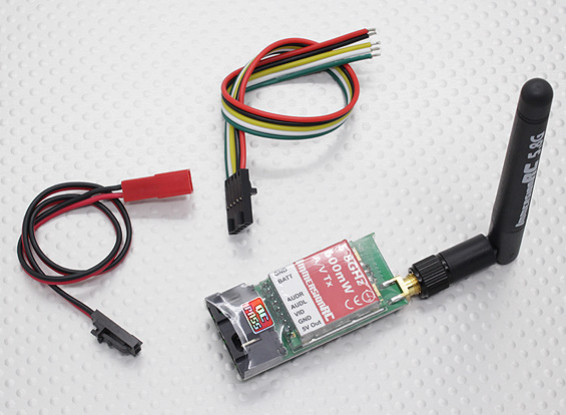

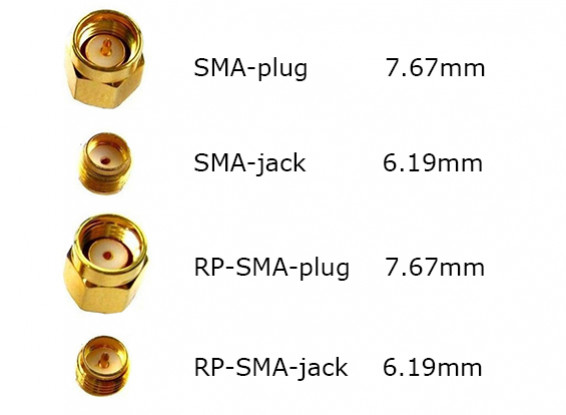

SMA Antenna connector, with supplied 5.8GHz antenna.
Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
Fully compatible with 2.4GHz R/C radios
On-board quiet switching regulator, powers 5v cameras (including HD versions)
Weight: 18 grams
Size: 50 x 23mm
Input voltage range: 7~25v
Camera Power Supply: 300mA / 5v
Video Input: 1Vpp, 75 Ohms
