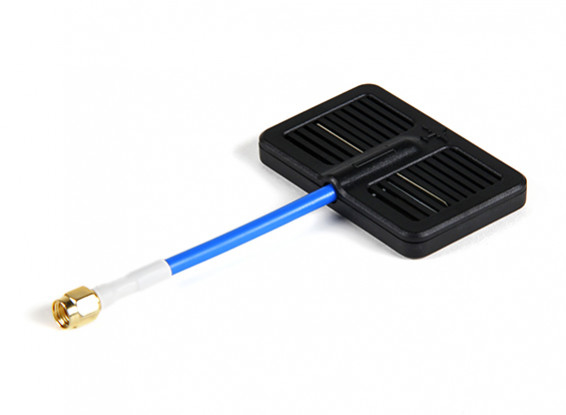

Panelová FPV anténa Hawkeye Tomahawk Backfire 5.8GHz 12DBi (RP-SMA)

Panelová směrová anténa s vysokým ziskem pro systémy s dlouhým dosahem.
Kód: Tomahawk
dodací lhůta : 5 dnů
Výrobce: HobbyKing
690,00 Kč s DPH
Dostupnost: 2 ks je skladem

Panelová směrová anténa s vysokým ziskem pro systémy s dlouhým dosahem.

Díky vysokému zisku získáte větší dosah i pro FPV modely osazené vysílačem s malým výkonem (např. 25mW).

Pokud je použijete v kombinaci s modelem, který je osazený výkonným FPV vysílačem (600mW), dosáhnete excelentního příjmu obrazu na velké vzdálenosti.

Anténa je kompatibilní s kruhovou polaricací antén RHPC a LHCP, lze ji tedy použít s modely, které jsou osazené různým typem FPV antén.

Anténa je určená pro přijímače.

Incorporating some revolutionary concepts in antenna design, the Tomahawk Backfire antenna is a high gain, wide angle antenna draws from radar technology to optimise its performance. In doing so the Tomahawk backfire squeezes maximum performance into a unit less than half the size of similar antenna whilst maintaining an incredible 175° horizontal and 60° vertical fields.

Lightweight and headset-mountable, the Tomahawk backfire can breathe new life into your 5.8GHz FPV gear, giving it a huge boost in range.

Note: This antenna will work with both left hand and right hand circular polarised antennas.

Specs:

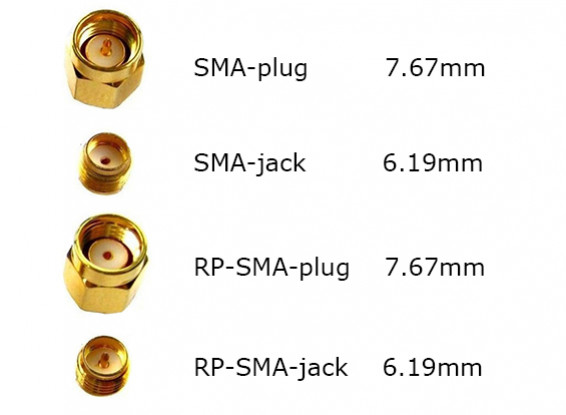

Connector: RP-SMA
Frequency: 5.6-5.95GHz
Impedance: 50Ω
Gain: 12dBi
VSWR: <1.3
Vertical lobe angle: 60°
Horizontal lobe angle: >175°
Power limit: 50W
Dimensions: 62 x 40 x 8mm (122mm length inc stem)

Note: The antenna should be orientated at approximately 45 degrees up to the sky for best performance.
