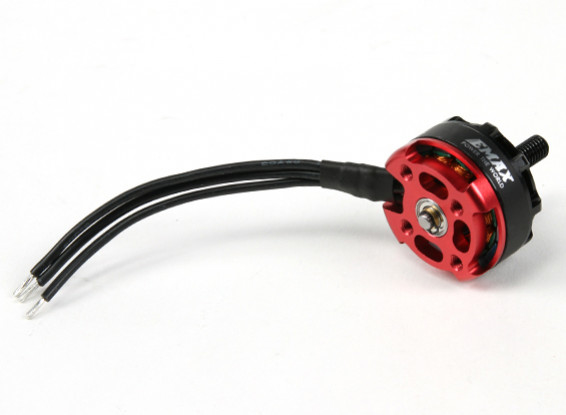

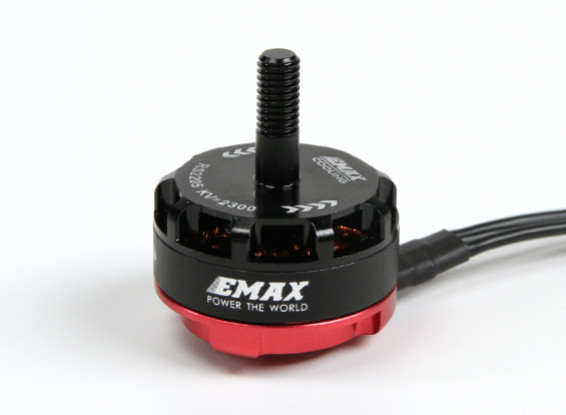

Střídavý motor EMAX RS2205 2300KV for FPV Racing CW

Výkonný závodní motory určené pro FPV racing, motory jsou vyrobené z kvalitních materiálů jako jsou japonská ložiska, výborné magnety 40 UH a lépe odizolované vinutí s laminací 0,20mm. Díky tomu mají motory větší účinnost, kroutící moment a zároveň dlouhou živostnost i pří větším zatížení.
Výrobce: HobbyKing
Dostupnost: 2 ks je skladem
Kód: EMAX-RS2205-CW
dodací lhůta : 3 - 5 dnů
Stará cena: 690,00 Kč s DPH
490,00 Kč s DPH
Tento výrobek má minimální množství 2
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Výkonný a kvalitní motor s tahem až 1kg což udělá z každé PFV koptéry závodní monstrum

Introducing the Emax Race Spec series of high performance brushless motors built for multirotor FPV racing!

From the drawing board through to the production line, these motors have been designed and engineered to provide premium performance in their class. Every motor is precision crafted within tight tolerances and paired with high performance props from any leading manufacturer they will deliver awesome thrust and speed to burn.

Emax have produced an excellent motor and gone the whole nine yards by incorporating some real quality features.

The unique cooling fins draw up air from the motor base that then passes through the coils as the motor spools up. The faster it spins, the more air it moves. This “cool” feature reduces operating temperatures by up to 30% providing you with a longer lasting motor.

This series of motors uses the highest grade N52 magnets allowing motor operation that provides outstanding acceleration, stopping power and sustained high RPMs and this is assisted by genuine Japanese NMB bearings that ensure the smoothest operation.

Emax Race Spec motors will deliver reliable and outstanding performance for your racing quad and you know that's exactly what you need if you want to take that chequered flag.

Key Features:
• Up to 1024g thrust with 4s battery
• Cooling design reduces motor temperature by up to 30%
• Highest Grade N52 Neodymium magnets
• Genuine Japanese NMB Bearings
• Dynamically balanced in the factory.
• 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

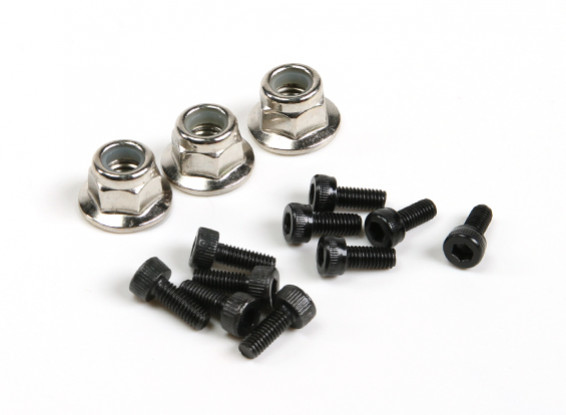

• 3 Lock nuts and 2 sets of motor screws for 3mm and 4mm thick frames.
• High purity copper windings

Specs:
Configuration: 12N14P
Input voltage: 3S-4S (12.6 - 16.8v)
Motor Height: 31.7mm
Motor Diameter: 27.9mm
Prop Adapter Shaft Thread: M5
Stator Diameter: 22mm
Stator Height: 5mm
Shaft Diameter: 3mm
Weight: Approx. 30g
Max Thrust: KV2300 With 5045 Propeller: 1024g
Motor Direction: CW
