Výkonný a kvalitní motor s tahem až 1kg, který udělá z každé PFV koptéry závodní monstrum.

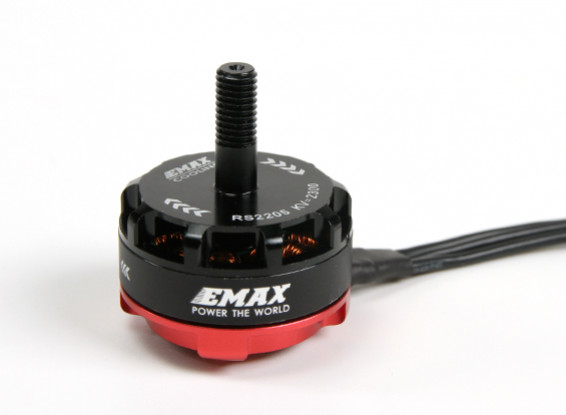

Introducing the Emax Race Spec series of high performance brushless motors built for multirotor FPV racing!
From the drawing board through to the production line, these motors have been designed and engineered to provide premium performance in their class. Every motor is precision crafted within tight tolerances and paired with high performance props from any leading manufacturer they will deliver awesome thrust and speed to burn.
Emax have produced an excellent motor and gone the whole nine yards by incorporating some real quality features.
The unique cooling fins draw up air from the motor base that then passes through the coils as the motor spools up. The faster it spins, the more air it moves. This “cool” feature reduces operating temperatures by up to 30% providing you with a longer lasting motor.
This series of motors uses the highest grade N52 magnets allowing motor operation that provides outstanding acceleration, stopping power and sustained high RPMs and this is assisted by genuine Japanese NMB bearings that ensure the smoothest operation.
Emax Race Spec motors will deliver reliable and outstanding performance for your racing quad and you know that's exactly what you need if you want to take that chequered flag.
• Up to 1024g thrust with 4s battery
• Cooling design reduces motor temperature by up to 30%
• Highest Grade N52 Neodymium magnets
• Genuine Japanese NMB Bearings
• Dynamically balanced in the factory.
• 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

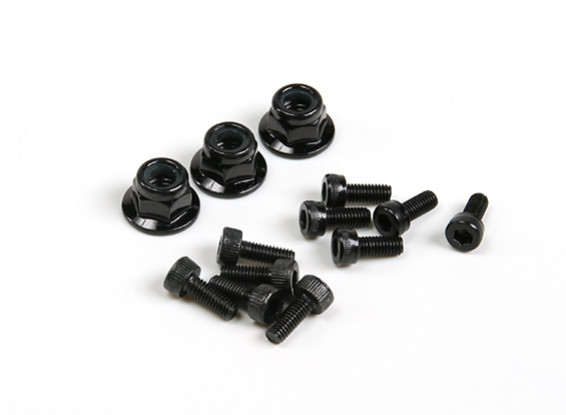

• 3 Lock nuts and 2 sets of motor screws for 3mm and 4mm thick frames.
• High purity copper windings
Input voltage: 3S-4S (12.6 - 16.8v)
Motor Height: 31.7mm
Motor Diameter: 27.9mm
Prop Adapter Shaft Thread: M5
Stator Diameter: 22mm
Stator Height: 5mm
Shaft Diameter: 3mm
Weight: Approx. 30g
Max Thrust: KV2300 With 5045 Propeller: 1024g
Motor Direction: CCW
Pro vrtule 5045 / 5050 je nutný regulátor 30A
Pro menší vrtule 5030 bude stačit 20A.
