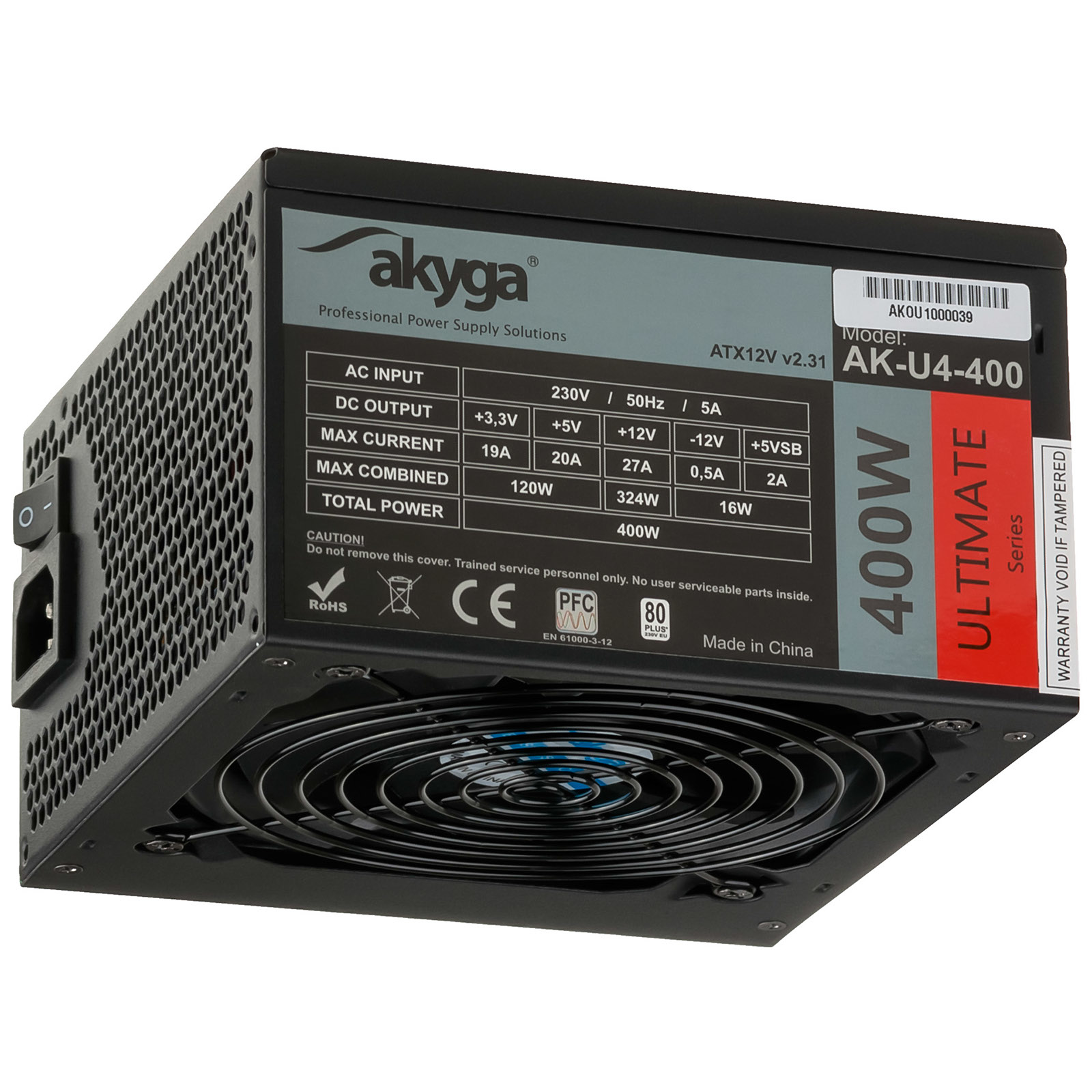

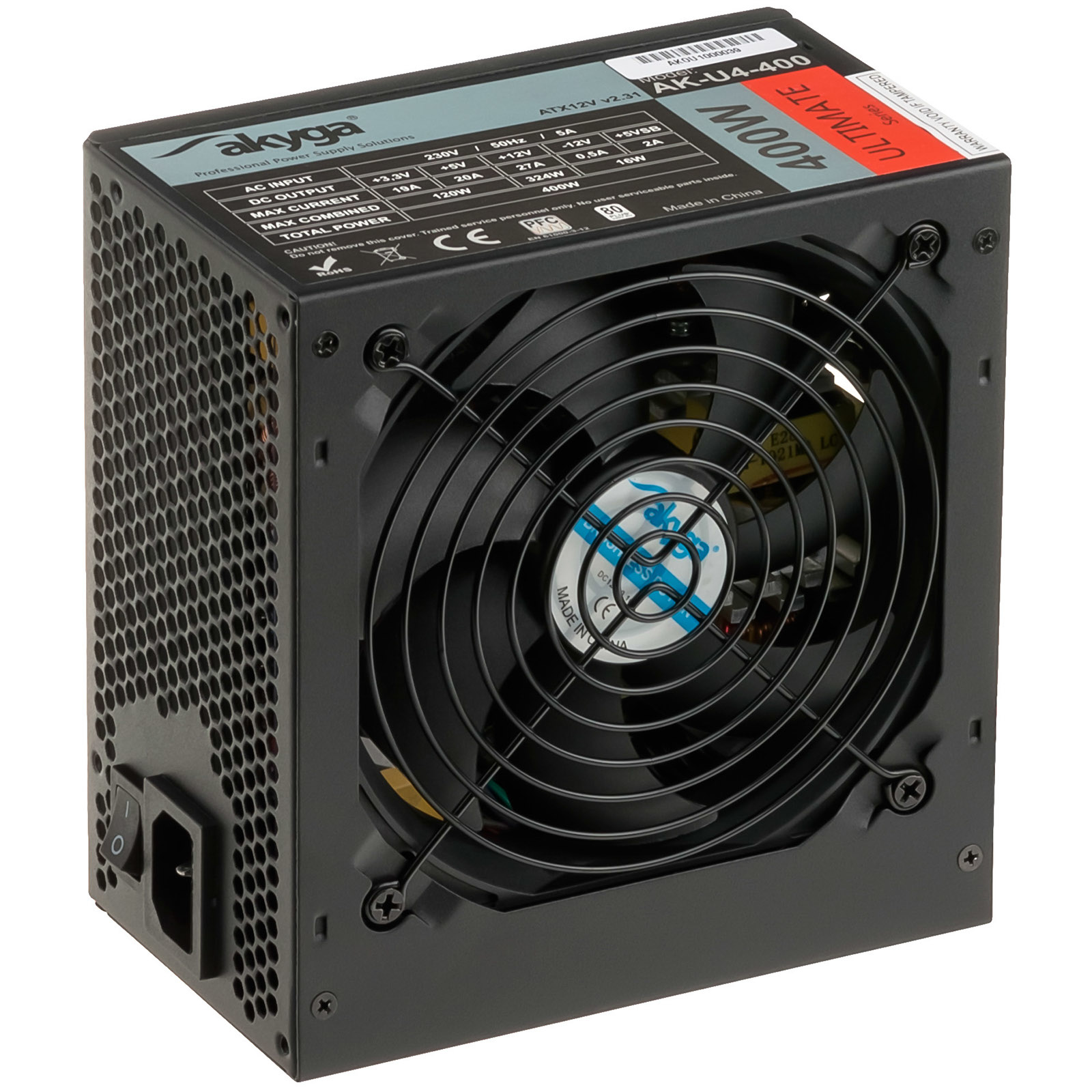

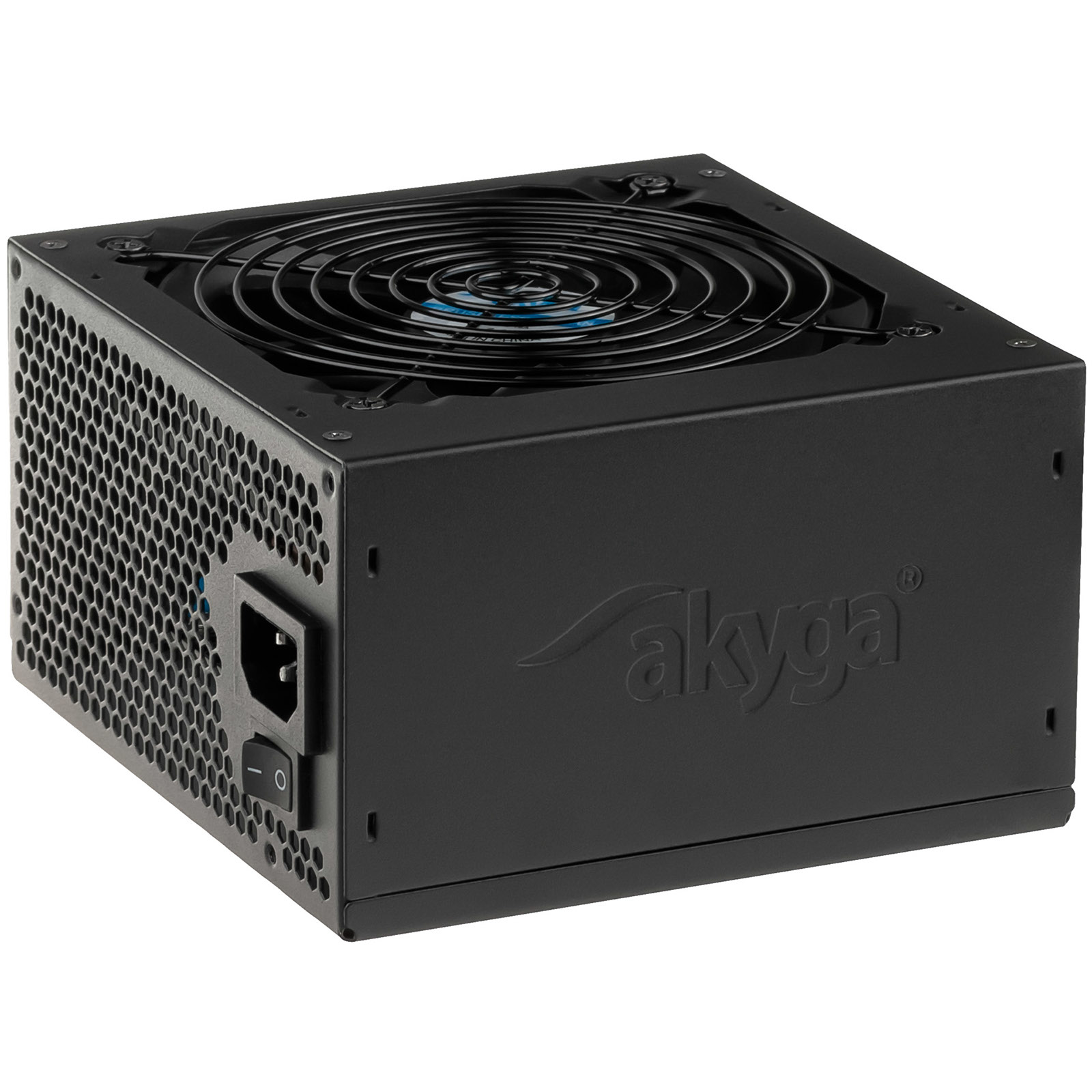

Akyga PC zdroj 400W Ultimate Series modulární 80+ Bronze 120mm ventilátor

Informace - tento produkt již není k dispozici

Kód: Akyga-400W-Ultimate
Výrobce: Ostatní
990,00 Kč s DPH
Dostupnost: Skladem

Kód produktu: AK-U4-400

Formát: ATX 2.31
Série: Ultimate
Napájecí napětí:230 V
Výkonnostní spotřeba: < 5A
Účinnost: > 80 %
Kompatibilní s 80 PLUS: Ano
Certifikace 80 PLUS: Bronzová
Proud na +3.3V kolejnici: 19A
Proud na + 5V kolejnici: 20A
Kombinovaný výkon of +3.3V a +5V: 120W
Proud na +12V kolejnici: 27A
Maximální zatížení na 12V vedení: 324W
Maximální výkon: 400W
Konektor ATX pro desku: 20+4-pin

Chlazení

Použitý 120mm tichý ventilátor optimalizuje využití zdroje a přispívá ke snížení hluku. Rychlost ventilátoru se nastavuje samočinně podle automatické detekce výkonu.

Vlastnosti

Jednotka vyhovuje standardu ATX 12V v2.31. Její 120mm ventilátor s hydraulickým ložiskem přispívá k tichému a dlouhotrvajícímu bezproblémovému provozu. Účinnost zdroje je větší než 80 procent. Ochranné prvky: OPP/UVP/OVP/SCP/OCP/OTP.

Features

  • Product codeAK-U4-400
  • Product typeComputer power supply
  • FormatATX 2.31
  • SeriesUltimate
  • Supply voltage230 V
  • Power consumption< 5 A
  • Efficiency> 80 %
  • 80 PLUS compatibilityYes
  • 80 PLUS certificateBronze
  • Current on the +3.3V rail19 A
  • Current on the +5V rail20 A
  • Maximum load on +3.3V and +5V line120 W
  • Current on the +12V rail27 A
  • Maximum load on 12V line324 W
  • Maximum power400 W
  • Mainboard Power Connector24-pin
  • Power connector ATX12V P4None
  • Power connector EPS12V 8 pin1 pc ( 4 + 4-pin )
  • Power connector PCI-E 6 pin1 pc
  • Power connector PCI-E 6+2 pin1 pc
  • Power connector PCI-E 8 pinNone
  • Molex connector2 pcs
  • Mini-Molex connector1 pc
  • SATA connector6 pcs
  • Modular power supplyNo
  • PFC filterActive
  • Mechanical switchYes
  • Ground wireYes
  • OVPYes
  • OCPYes
  • OPPYes
  • OTPYes
  • SCPYes
  • UVPYes
  • Power supply connectorIEC C14
  • Fan size120 mm
  • Fan adjustmentsAutomatic
  • Cable length45 - 75 cm
  • The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
  • The cable plug #2IEC C13
  • Power cable includedYes
  • MaterialGalvanized steel
  • Product colorBlack
  • MTBF100000 h
  • Temperature5 - 50 °C
  • PackageEcoBox
  • Product size (L x W x H)140 x 150 x 85 mm
  • Package size (L x W x H)222 x 155 x 95 mm
  • Net weight1.19 kg
  • Gross weight1.43 kg
  • CE compatibilityYes
  • FCC compatibilityNo
  • RoHS compatibilityYes
  • REACH compatibilityYes
  • Included accesoriesCable AK-PC-01C
  • EAN code 5901720131423

Reliable power supply with 80+ certification

The AK-U4-400 Ultimate series power supply is a reliable power source for computers with a powerful graphics card. It is ideal for the most popular computer sets.

Unrestricted operation

Max power
400 W

Fan dimensions
12 cm

Cable length
45-75 cm

Gwarancja
36 months

AK-U4-400 power supply unit provides 400 W of continuous power. The product is characterized by effective cooling during top speed operation, which is solved by a built-in 120 mm fan. The efficiency of the fan is ensured by a speed monitoring controller depending on the components temperature. Moreover, a wide range of cables enables connection of up to 9 devices equipped with SATA MOLEX MINI-MOLEX sockets and a powerful graphics card with two PCI-Express power sockets. In addition, the extended warranty ensures the reliability of the power supply.

High efficiency guaranteed

High efficiency of the power supply is guaranteed by its compliance with the 80 PLUS® Bronze standard. The certificate ensures that at least 85% of electricity is transferred to the powered components. This has a direct impact on energy savings as well as lower heat output.

Reliable protection

The power supply is equipped with a number of protections and an active PFC filter. They provide protection, prevent components from damage and stabilize the power supply, so it runs without unwanted interference.

OVP protection — Protects the power supply against too high a voltage on the output line. It is activated when the voltage increases by 15% from the nominal value.

OCP protection — Protects computer components from too high output current. In case of an overload, one of the lines is automatically switched off.

OPP protection — Protects against power supply overload.

OTP protection — Protects against overheating of the PSU caused by overload and insufficient air circulation.

UVP protection — Protects against too low voltage on the output lines.

SCP protection — Protects against short circuit.

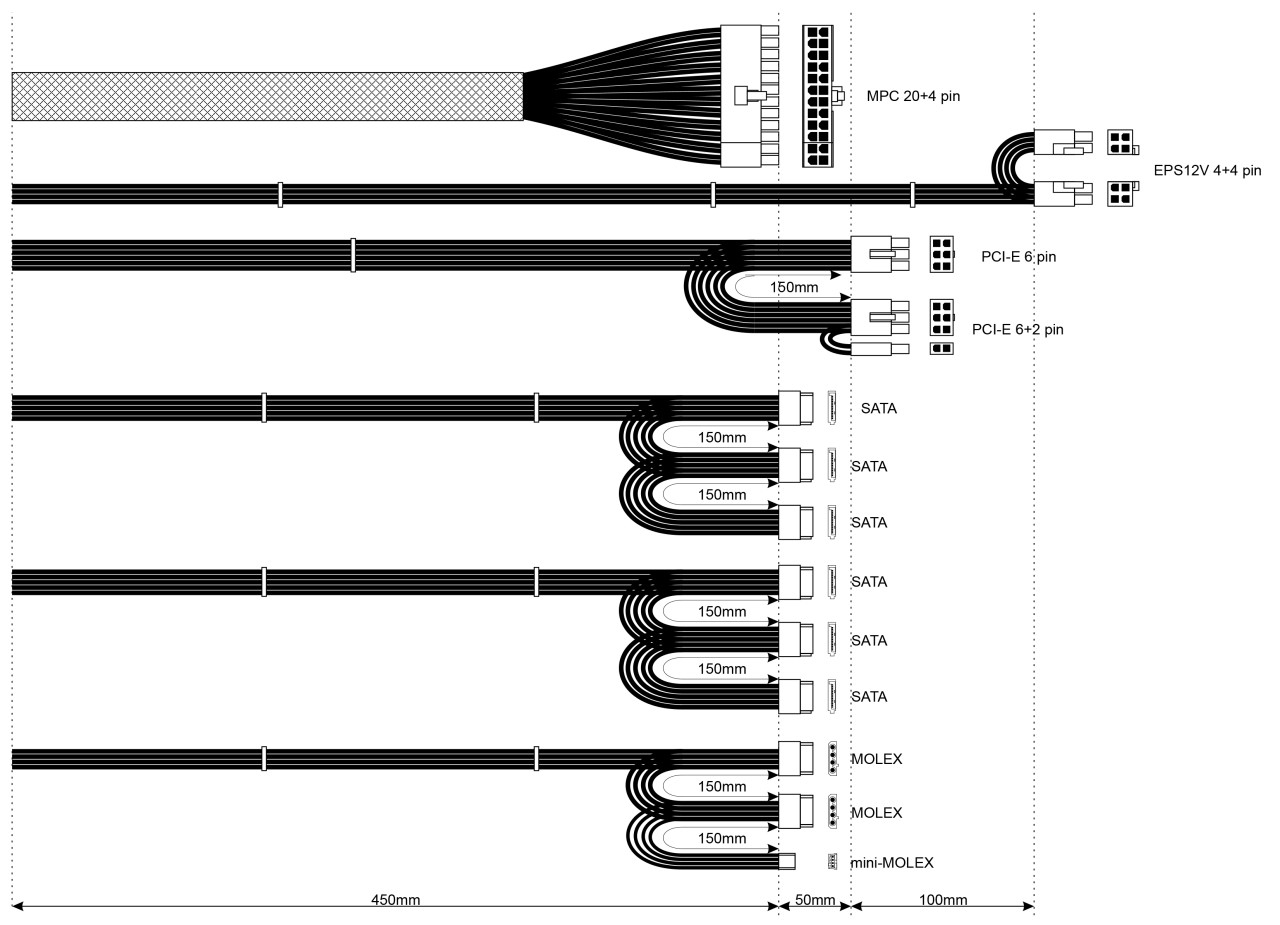

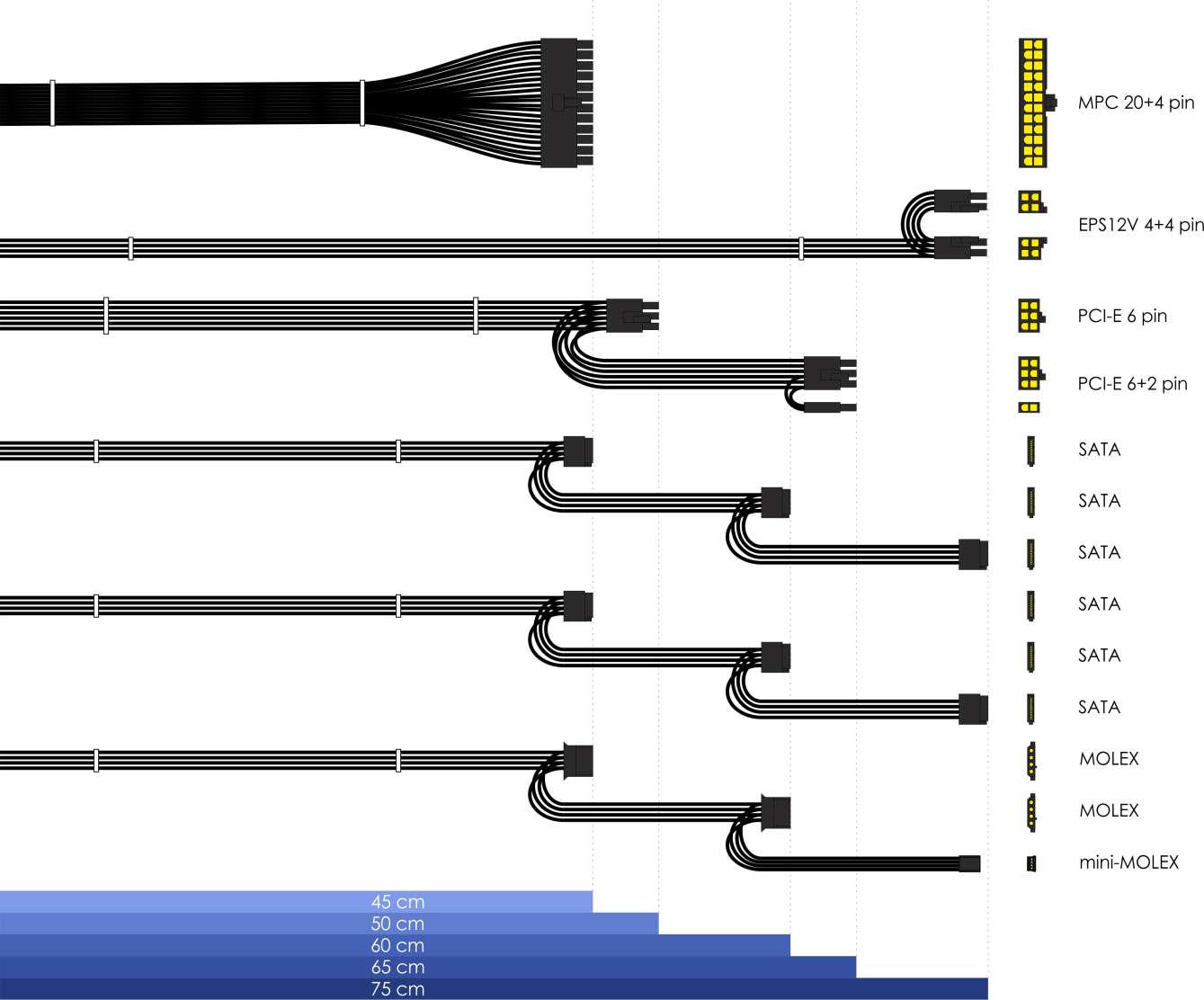

Variety of connectors

EPS12V connector
4+4 PIN

PCI Express connector
6+2 PIN

SATA conectors
6 pcs

Molex conectors
2 pcs

The power supply is supplied with a wide selection of plugs. In addition to the universal 24-pin MPC connector, the set includes two MOLEX connectorssix SATA connectors for Serial ATA HDDs and optical discs, and one mini-MOLEX connector. Additionally, the set includes PCI-E 6-pin connector and PCI-E 6+2-pin connector for graphics cards and one EPS12V 4+4-pin connector for powering motherboards. In addition, the power supply has a manual switch that allows user to safely cut off the power supply without having to unplug the power cord from the mains.

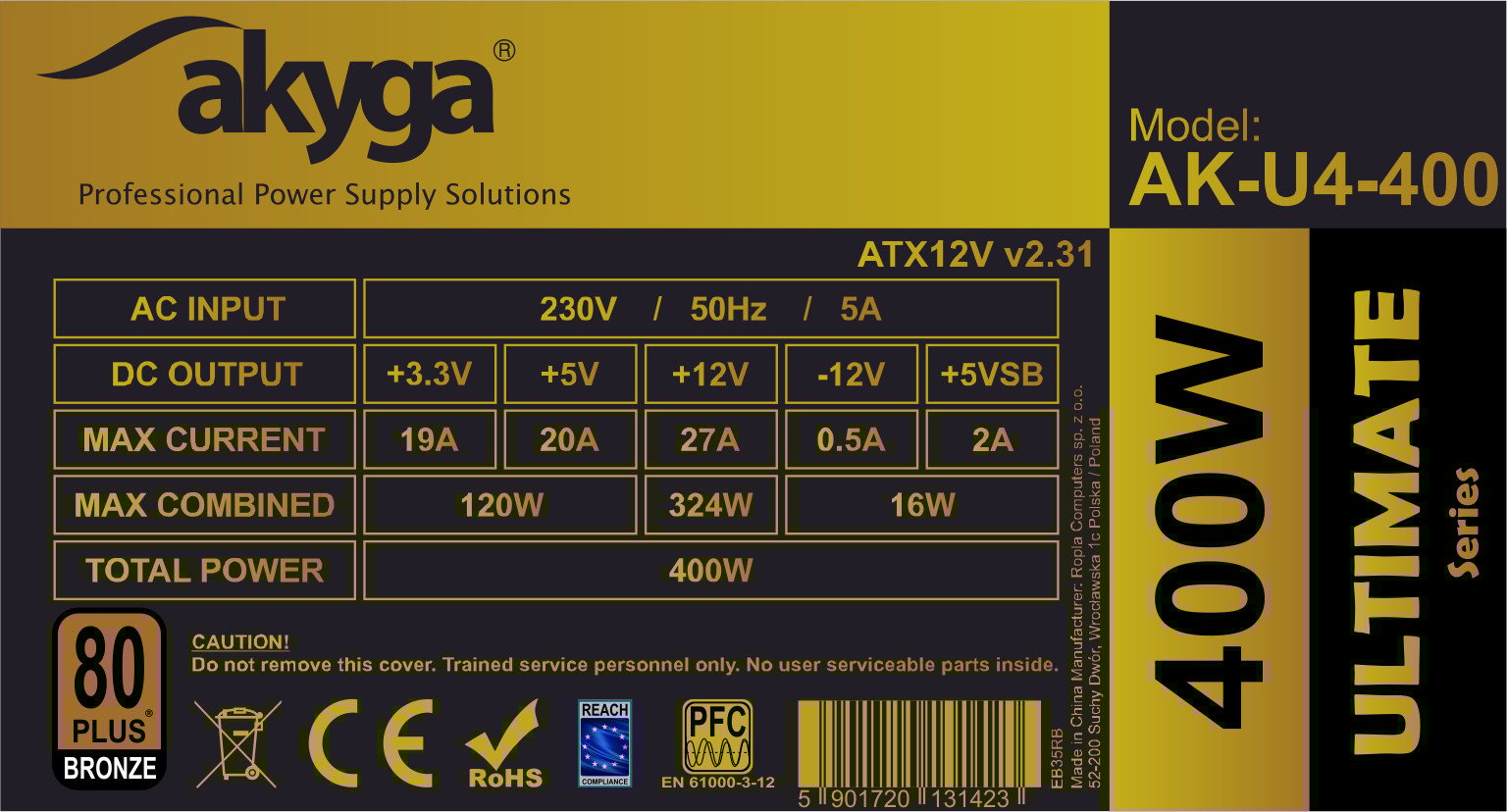

Nameplate
