4G DDR2-800 CL5 ECC 240-Pin DIMM Kit KVR800D2E5K2/4G

4G DDR2-800 CL5 ECC 240-Pin DIMM Kit KVR800D2E5K2/4G

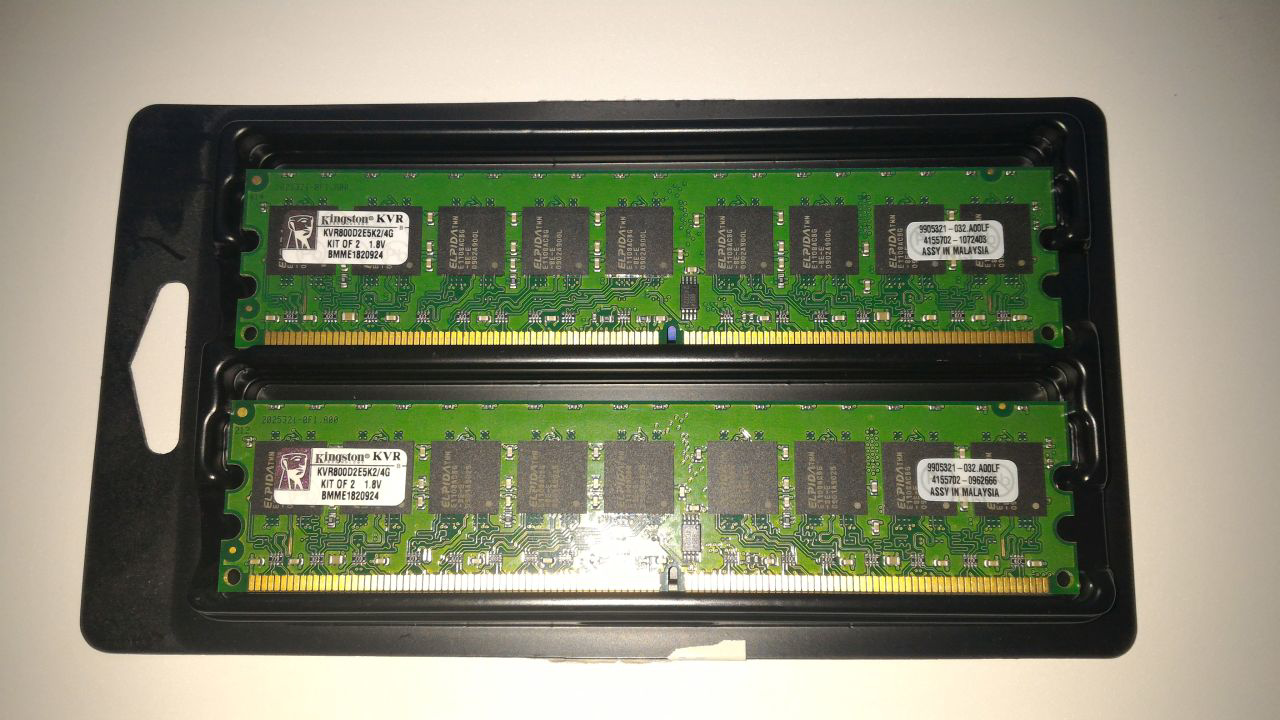

ValueRAM’s KVR800D2E5K2/4G is a kit of two 256M x 72-bit 2GB (2048MB) DDR2-800 CL5 SDRAM (Synchronous DRAM) ECC memory modules.

Total kit capacity is 4GB (4096MB).

The components on each module include eighteen 128M x 8-bit DDR2-800 SDRAM in FBGA packages.

Each 240-pin DIMM uses gold contact fingers and requires +1.8V.

The electrical and mechanical specifications are as follows:

SPECIFICATIONS Clock Cycle Time (tCK) CL=5 2.5ns (min.) / 8ns (max.) Row Cycle Time (tRC) 60ns (min.) Refresh to Active/Refresh 127.5ns Command Time (tRFC) Row Active Time (tRAS) 38ns (min.) / 70,000ns (max.) Single Power Supply of +1.8V (+/- .1V) Power 2.268 W (operating per module) UL Rating 94 V - 0

Excellent conditon, full tested and working.

https://www.kingston.com/datasheets/KVR800D2E5K2_4G.pdf
