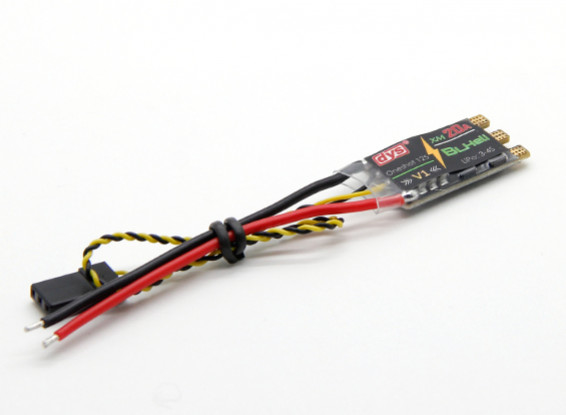

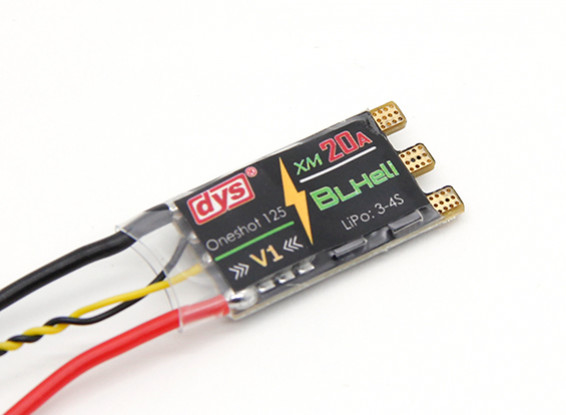

DYS XM20A 20A (3-4s) mini ESC for High KV Motors (BLHeli with OneShot)

Informace - tento produkt již není k dispozici

Regulátory jsou přímo navrženy dle potřeb řídících desek multirotorů. Jsou plně OPTO a kroucený kabel eliminuje přenos interferencí a rušení signálu plynu.
Kód: DYS-XM20A
Výrobce: HobbyKing
399,00 Kč s DPH

Ideální regulátor pro malé drony.

The DYS XM20A V1 ESC comes pre-flashed with the latest BlHeli software that is damped Light enabled and Oneshot ready. The XM20A series have been developed specificaly for higer KV motor applications and offer faster processing speeds than those of the popular SN20A series.

Features:
SiLabs F396 microprocessor
50MHz running speed
BLHeli Bootloader
MOS AOM7418 drivers
Solder pads for tidy motor wire installation

Specification:
3-4s LiPo
Output Current 20 amps
OPTO no BEC
Signal frequency 20-500Hz
Output PWM frequency 18kHz
Size 23 x 12 x 4.5mm
5.4 grams without wires
